Eliminating “Slip” Error in High-Precision Control: Laser Speed Measurement for Cold Rolling Mills

From roll-based estimation to true strip speed measurement

In high-precision cold rolling, speed is not only a production parameter. It is one of the fundamental signals behind gauge control, tension control, elongation control, mass flow calculation and coil quality evaluation.

Traditionally, strip speed is often calculated from motor encoder feedback, roll diameter, bridle roll speed or reel speed. These methods are practical and widely used, but they share one unavoidable limitation: they do not always represent the true strip speed.

Between the strip and the deflector roll (measuring roll), there may be slip. Between the work roll and the strip, there may be slip. During acceleration, deceleration, tension fluctuation, roll wear, lubrication change or thin-gauge rolling, these slip effects become more significant. For conventional production, the error may be acceptable. For high-end cold rolling, foil rolling, battery materials, automotive sheet and precision stainless steel, the same error can become a direct source of quality deviation.

Metals-Tech applies laser speed measurement technology to cold rolling mills, integrating non-contact true speed feedback into Level 1 automation, AGC, AFC, tension control, elongation control and Level 2 process models. The result is a more accurate, more stable and more intelligent rolling process.

Why Slip Error Matters

Cold rolling is a process of controlled deformation. The strip is reduced, elongated and tensioned as it passes through the mill. To control this process precisely, the automation system must know how fast the material is actually moving.

However, when speed is inferred from rotating components, the measurement may contain hidden errors.

Encoder speed
     ↓
Roll diameter compensation
     ↓
Calculated strip speed
     ↓
Possible error sources:
roll wear / roll thermal expansion / No-load loss of rolls varies with seasons and ambient conditions /strip-roll slip / tension change / surface condition

The problem is not that encoder feedback is unreliable. The problem is that encoder feedback measures the rotation of a mechanical part, not the movement of the strip itself.

For a high-speed cold rolling mill, even a small speed error can influence:

Control Function	Impact of Slip Error
Mass flow AGC	Incorrect entry/exit flow calculation and gauge deviation
Tension control	Unstable tension reference and compensation error
Elongation control	Incorrect elongation calculation in skin pass or tension leveler
Coil length calculation	Inaccurate production length and yield record
Speed synchronization	The entry and exit deflector rolls/bridle rolls and reels are precisely synchronized with strip speed to prevent scratch damage on the strip surface.
Product quality analysis	Distorted process data and root-cause diagnosis

In high-end production, the control system must eliminate uncertainty at the signal source. Laser speed measurement provides this foundation.

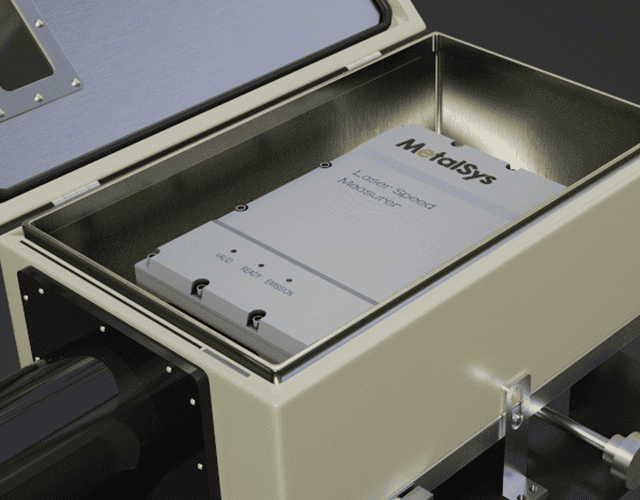

Laser Speed Measurement: Measuring the Strip, Not the Roll

Laser speed measurement is a non-contact technology that directly measures the moving strip surface. It does not rely on roll diameter, roll contact, mechanical friction or encoder conversion. Therefore, it can provide true strip speed even when slip occurs between the strip and the roll.

The measurement principle is simple in concept but powerful in application: the sensor detects the movement of the strip surface and outputs a high-precision speed signal to the automation system. This signal can then be used as the reliable reference for advanced control functions.

Key advantages

Feature	Value for Cold Rolling
Non-contact measurement	No mechanical wear, no roll contact error
True strip speed	Eliminates slip between strip and deflector roll (measuring roll)
Fast response	Suitable for dynamic control during acceleration and deceleration
High repeatability	Improves process stability and quality consistency
Digital integration	Can be connected to PLC, drive system, AGC and Level 2 models
Better traceability	Provides accurate speed and length records for each coil

From Speed Accuracy to Gauge Accuracy

Automatic Gauge Control relies heavily on accurate process feedback. In many cold rolling mills, mass flow control is one of the most effective methods for improving thickness accuracy. It compares the material flow entering and leaving the roll gap:

Entry thickness × Entry speed ≈ Exit thickness × Exit speed

If entry or exit speed is calculated with slip error, the mass flow calculation is no longer fully reliable. The control system may compensate for a deviation that does not truly exist, or miss a deviation that has already started to develop.

With laser speed measurement, the mass flow calculation becomes more accurate because the system uses true strip speed rather than roll-derived speed.

Laser entry speed + laser exit speed
        ↓
More accurate mass flow calculation
        ↓
Faster AGC response
        ↓
Lower off-gauge length
        ↓
Higher full-coil thickness consistency

For thin-gauge aluminium/copper, battery materials and high-precision stainless steel, this improvement can directly reduce off-gauge length, improve yield and support stricter product tolerance.

Improving Tension and Elongation Control

In cold rolling and skin pass rolling, tension and elongation are closely related to strip speed. When the system uses roll-based speed estimation, slip can lead to inaccurate elongation calculation.

This is especially important in:

• Skin pass mills

• Tension levelers

• Recoiling lines

• Aluminium foil mills

• Battery foil production lines

• High-strength steel and stainless steel lines

For example, in skin pass rolling, the required elongation may be very small but must be controlled very precisely. A small speed measurement error between entry and exit sides may result in incorrect elongation feedback. Laser speed measurement helps eliminate this error and improves the reliability of elongation control.

Application	Benefit of Laser Speed Measurement
Skin pass mill	More accurate elongation control
Tension leveler	Better extension and flatness stability
Cold rolling mill	Improved mass flow and gauge control
Foil mill	Reduced speed-related gauge fluctuation
Processing line	More accurate length, speed and coil tracking
Battery material line	Higher stability for thin and sensitive products

Reducing Transition Loss During Acceleration and Deceleration

Rolling speed is not constant during the entire coil. At the head and tail of the strip, the mill must accelerate and decelerate. These transition zones are often the most difficult areas for gauge and tension control.

During speed change, slip conditions may also change. Lubrication, roll bite condition, strip tension and forward slip are all dynamic. If the control system depends only on mechanical speed feedback, it may not fully capture the actual strip behavior.

Laser speed measurement provides real-time true speed during these dynamic phases. This allows the control system to improve:

Process Phase	Control Improvement
Threading	More reliable strip movement detection
Acceleration	Better speed synchronization and mass flow correction
Steady rolling	Stable reference for AGC and tension control
Deceleration	Reduced tail-end off-gauge length
Tail-out	More accurate length and coil-end tracking

Metals-Tech’s Integrated Automation Architecture

Metals-Tech does not treat laser speed measurement as an isolated instrument. It is integrated into the full automation and digital control architecture of the rolling mill.

Laser Speed Sensor
        ↓
Signal Processing Unit
        ↓
Level 1 PLC / APC System
        ↓
AGC / Tension / Elongation / Mass Flow Control
        ↓
Drive System and Actuator Coordination
        ↓
Level 2 Model and Coil Quality Report
        ↓
Data Analysis and Process Optimization

This integration enables the sensor value to become a real control variable, not only a display signal. The measured true speed can be used for:

• Entry and exit strip speed feedback

• Mass flow AGC calculation

• Forward slip setup and monitoring

• Tension control compensation

• Elongation control

• Speed synchronization

• Coil length calculation

• Quality report generation

• Model adaptation and process learning

Through this architecture, laser speed measurement becomes part of the mill’s intelligent control system.

Detecting and Understanding Slip

One additional advantage of laser speed measurement is that it makes slip visible.

When the system has both encoder-based roll speed and laser-based strip speed, it can calculate the actual difference between them. This provides valuable process information.

Roll surface speed – True strip speed = Slip-related deviation

By monitoring this deviation, operators and engineers can better understand the rolling process. Slip trends may indicate changes in lubrication, roll surface condition, tension balance, strip surface quality or rolling force.

Slip Trend	Possible Process Meaning
Increasing roll-strip deviation	Lubrication change or unstable roll bite
Sudden speed mismatch	Tension disturbance or strip movement abnormality
Pass-dependent slip pattern	Product-specific deformation behavior
Width or alloy-related variation	Different surface and plasticity conditions
Abnormal tail-end slip	Deceleration or winding instability

This transforms slip from a hidden error into a measurable process indicator.

Digital Quality: Accurate Speed Data for Full-Coil Traceability

For premium cold-rolled products, customers increasingly require not only final quality results but also process evidence. Accurate speed data is an important part of this evidence.

With laser speed measurement, Metals-Tech’s digital quality system can record true strip speed, length, acceleration, deceleration, mass flow deviation and speed synchronization status for each coil.

The system can connect speed data with:

Data Category	Typical Signals
Thickness quality	Entry gauge, exit gauge, AGC deviation, off-gauge length
Shape quality	Flatness signal, bending force, tilting, zone cooling
Tension condition	Entry tension, exit tension, reel torque, bridle status
Speed condition	Laser speed, encoder speed, acceleration, slip deviation
Process condition	Rolling force, motor current, coolant status, pass schedule
Coil record	Length, product grade, customer requirement, quality judgment

This provides a stronger basis for process optimization, customer audit and continuous improvement.

Practical Benefits for Producers

Laser speed measurement creates value by improving both control accuracy and process transparency.

Improvement Area	Production Value
Elimination of slip error	More reliable control input
Better AGC performance	Lower thickness deviation and off-gauge length
More accurate elongation control	Higher quality in skin pass and tension leveling
Improved speed synchronization	Reduced strip instability and transition loss, eliminate surface scratches on the strip
Accurate coil length	Better yield calculation and production reporting
Slip monitoring	Better diagnosis of lubrication and roll bite conditions
Digital traceability	Stronger process evidence for premium customers

For producers of aluminium/copper cold strip, foil, battery foil, automotive sheet, stainless steel and precision strip, these improvements are directly connected to product quality and commercial value.

Application Fields

Laser speed measurement is especially suitable for production lines where high precision and high repeatability are required.

Field	Typical Product Requirement
Aluminium/Copper cold rolling	Tight gauge tolerance and stable mass flow
Aluminium/Copper foil rolling	Ultra-thin gauge and high-speed stability
Battery foil	High consistency, low defect rate and precise length
Automotive sheet	Stable process data and premium surface quality
Stainless steel rolling	Accurate tension and speed under high rolling force
Skin pass rolling	Precise elongation and surface finishing
Tension leveling	Accurate extension and flatness correction
Processing lines	Reliable speed, length and tracking control

Metals-Tech’s Role: From Instrument Signal to Intelligent Control

A sensor alone does not create performance. The value comes from how the signal is integrated, filtered, validated and used by the automation system.

Metals-Tech provides complete engineering support for laser speed measurement applications, including:

Process Analysis
Identifying where slip error affects quality, yield or control stability.

Sensor Selection and Layout
Defining the best measuring position, installation angle, protection method and signal interface.

Level 1 Integration
Connecting laser speed feedback with PLC, APC, drive system and technological control.

Control Function Upgrade
Using true speed feedback in AGC, tension control, elongation control and mass flow control.

Level 2 and Digital Connection
Applying speed data to setup models, coil tracking, quality reports and long-term process analysis.

Commissioning and Optimization
Tuning control parameters, validating measurement accuracy and improving production performance.

Conclusion: True Speed Creates True Control

In high-precision cold rolling, hidden speed error can become hidden quality loss. Slip between the strip and mechanical measuring rolls may be small, but its influence on gauge control, tension control, elongation control and quality traceability can be significant.

Laser speed measurement provides a direct and effective solution. By measuring the true movement of the strip, it eliminates slip-related error at the source and gives the automation system a more reliable foundation for control.

Metals-Tech integrates laser speed measurement into the full cold rolling control architecture, turning true strip speed into better AGC performance, more accurate elongation control, improved precise speed matching, improved transition stability and stronger digital quality evidence.

For the next generation of precision rolling, control accuracy begins with measurement accuracy. And measurement accuracy begins with seeing the strip itself.
